ISD4.5

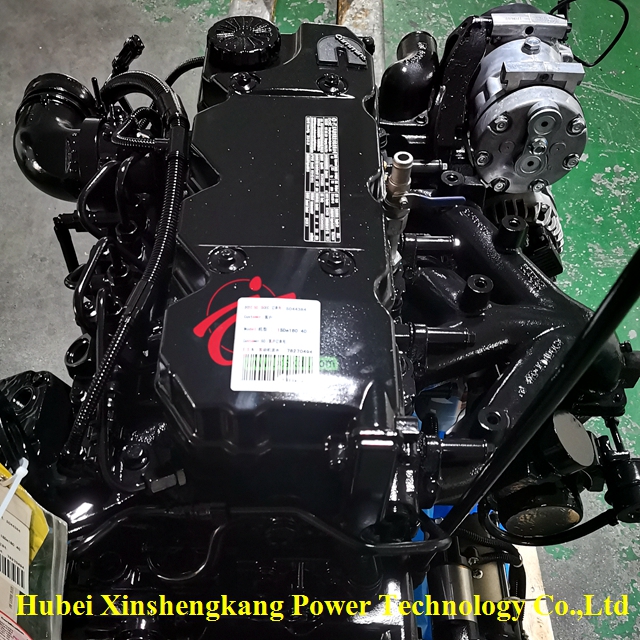

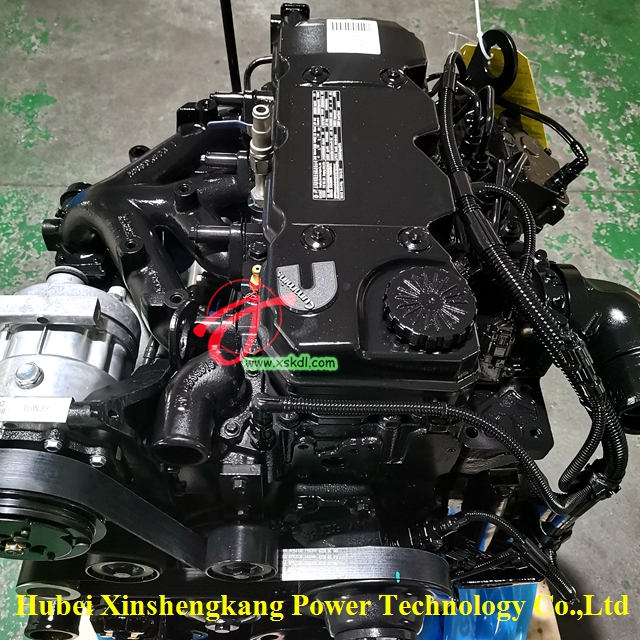

The power range of Cummins ISD4.5 engine for automotive is 140HP-185HP (103KW-136KW).
Check the following technicial data of the ISD4.5 Engine:
Engine Type: Inline, 4Cylinders, Water Cooled, Four Strokes
Bore x Stroke (mm): 107 x 124
Displacement (L): 4.5
Aspiration: Turbocharged
Emission Certification: NS V
| Engine Model | Emission Standard | Rated Power (KW@RPM) | Torque Peak (Nm@RPM) | Cylinders | Displacement (L) | Aspiration |
| ISD140 50 | NS V | 103 @ 2500 | 550 @ 1100-1600 | 4 | 4.5 | CAC |
| ISD160 50 | NS V | 118 @ 2500 | 600 @ 1200-1600 | 4 | 4.5 | CAC |
| ISD180 50 | NS V | 132 @ 2500 | 700 @ 1200-1600 | 4 | 4.5 | CAC |
| ISD185 50 | NS V | 136 @ 2500 | 700 @ 1200-1600 | 4 | 4.5 | CAC |
| ISD140 51 | NS V | 103 @ 2300 | 550 @ 1100-1600 | 4 | 4.5 | CAC |
| ISD160 51 | NS V | 118 @ 2300 | 600 @ 1100-1600 | 4 | 4.5 | CAC |
| ISD185 51 | NS V | 136 @ 2300 | 700 @ 1200-1800 | 4 | 4.5 | CAC |
