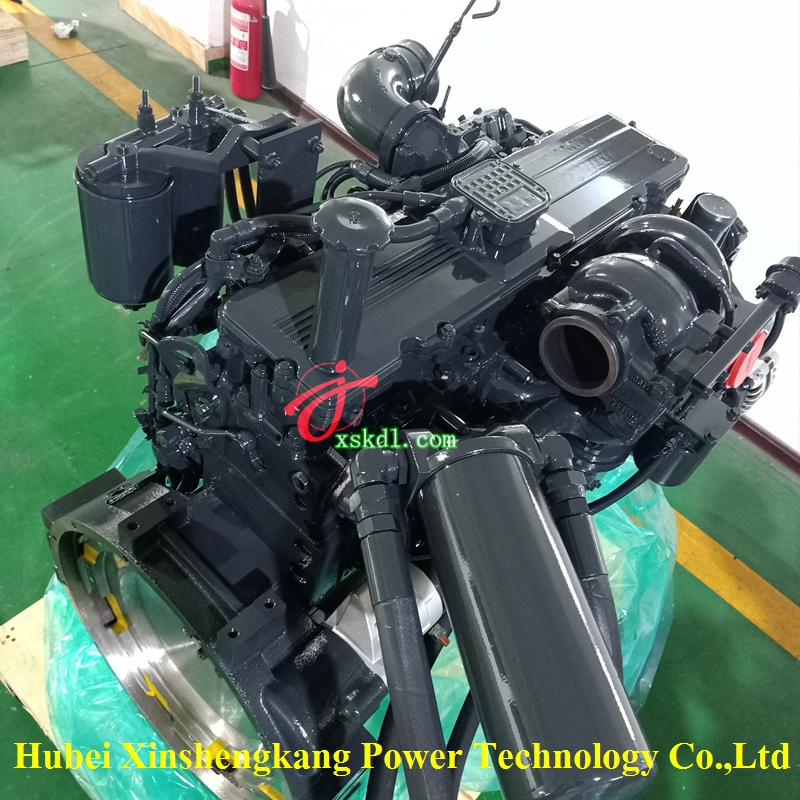

QSC8.3
The power range of QSC8.3 engine is 215HP-260HP.
This series are widely applied to XCMG (Horizontal Directional Drilling XZ400), Lonking (excavator LG6365E), Terex (crane HC165), etc.
Cummins QSC8.3 engine technician data shows as below:
Engine Type: Inline, 6Cylinders, Water Cooled, Four Strokes
Bore x Stroke (mm): 114 x 135
Displacement (L): 8.3
Aspiration: Turbocharged
Emission Certification: NS II
Fuel System: Bosch High Pressure Common Rail
| Engine Model | Emission Standard | Rated Power (HP@RPM) | Torque Peak (LB-FT@RPM) | Cylinders | Displacement (L) | Aspiration |
| QSC8.3-C215 | NS III/EU Stage IIIA | 215 @ 2200 | 980 @ 1350 | 6 | 8.3 | CAC |
| QSC8.3-C220 | NS III/EU Stage IIIA | 220 @ 2200 | 950 @ 1350 | 6 | 8.3 | CAC |
| QSC8.3-C240 | NS III/EU Stage IIIA | 240 @ 2200 | 1040 @ 1350 | 6 | 8.3 | CAC |
| QSC8.3-C260 | NS III/EU Stage IIIA | 260 @ 2200 | 1135 @ 1350 | 6 | 8.3 | CAC |
The power range of QSC8.3 engine is 215HP-260HP.
This series are widely applied to XCMG (Horizontal Directional Drilling XZ400), Lonking (excavator LG6365E), Terex (crane HC165), etc.
Cummins QSC8.3 engine technician data shows as below:
Engine Type: Inline, 6Cylinders, Water Cooled, Four Strokes
Bore x Stroke (mm): 114 x 135
Displacement (L): 8.3
Aspiration: Turbocharged
Emission Certification: NS II
Fuel System: Bosch High Pressure Common Rail
| Engine Model | Emission Standard | Rated Power (HP@RPM) | Torque Peak (LB-FT@RPM) | Cylinders | Displacement (L) | Aspiration |
| QSC8.3-C215 | NS III/EU Stage IIIA | 215 @ 2200 | 980 @ 1350 | 6 | 8.3 | CAC |
| QSC8.3-C220 | NS III/EU Stage IIIA | 220 @ 2200 | 950 @ 1350 | 6 | 8.3 | CAC |
| QSC8.3-C240 | NS III/EU Stage IIIA | 240 @ 2200 | 1040 @ 1350 | 6 | 8.3 | CAC |
| QSC8.3-C260 | NS III/EU Stage IIIA | 260 @ 2200 | 1135 @ 1350 | 6 | 8.3 | CAC |
